HYUNDAI WIA
CNC Machine : KF5600

About Hyundai WIA : Designed with advanced technology, Hyundai WIA’s Fast & Versatile Machining Center maximizes productivity

CNC Machine Features

  • High-precision machining by improved spindle quality
  • High-speed roller type LM guide in all axes
  • Enhanced chip disposal capabilities by applying the upper-type conveyor

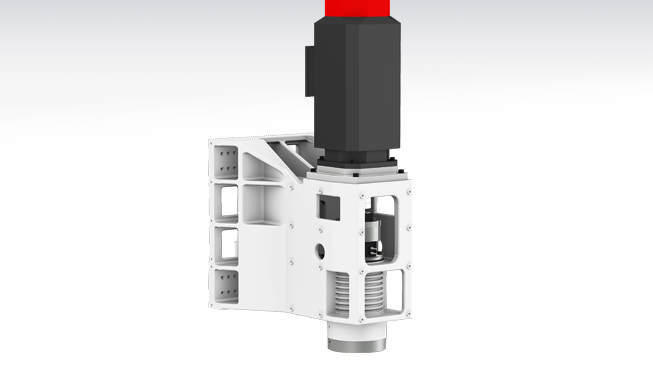

  • Various motors and columns provided for customized machining
  • Improved user convenience by applying the latest controller of FANUC

CNC Machine Specifications

Description Unit KF5600 II(8k) KF5600 II(8k-OPT1) KF5600 II(10k-OPT2) KF5600 II(12k-OPT3)
Table Size mm 1250×560 1250×560 1250×560 1250×560
Max. Load Capacity kg 1,000 1,000 1,000 1,000
Spindle Driving Method Direct Direct Direct Direct
Spindle Taper BBT40 BBT40 BBT40 HSK-A63
Spindle RPM r/min 8,000 8,000 10,000 12,000
Spindle Power kW 18.5/11 15/11 18.5/11 18.5/11
Spindle Torque N.m 118/52.5 286/143 118/52.5 118/52.5
Travel(X/Y/Z) mm 1100/560/520 1100/560/520 1100/560/520 1100/560/520
Rapid Feed Rate(X/Y/Z) m/min 36/36/30 36/36/30 36/36/30 36/36/30
Slide Type LM LM LM LM
No. of Tools EA 30 30 30 30
Tool Change Time
(Chip To Chip)
sec 3.2 3.2 3.2 3.2
